IOT security systems

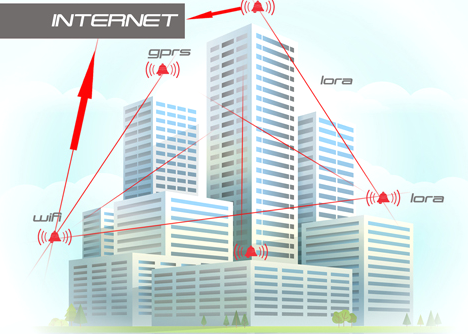

The devices are powered with embedded low power and long range LORA transceiver, and they automatically form a two-way mesh network, for alarm transmission and monitoring in real time.

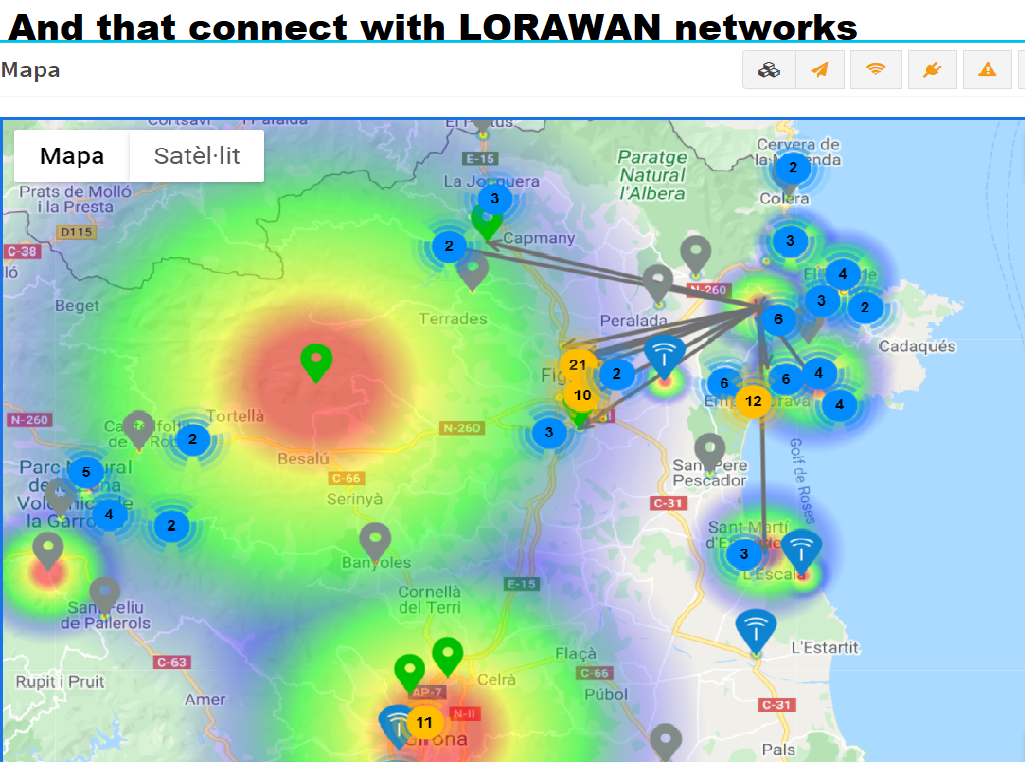

They can also connect with LORAWAN networks, so it can be used in lot of places around the world.
LORA modulation provide best in class inmmunity against jamming in a way that provide reliable backup for signals and alarms in case of ETHERNET / GPRS / WIFI failure.
As communication it is the most important part of a security system, provide your customers with an hyper connected device capable of communicating over 6 technologies:
- ETHERNET
- WIFI
- EGPRS
- NB-IOT
- LTE-CAT-M1
- LORA / LORAWAN
Cirrus-4T technology
- State of the art board that can provide 4 technologies to communicate to Central station.
- 2G/3G/4G/NB-IOT modem options by means of on board low cost QUECTEL M95/UG95/EC91/BC95 modem.
- ETHERNET 10/100T plugin option.
- WIFI ESP WROOM2 low cost modem
- LORA SX1276 Long range wireless module
- IEE 802.15.4 module option for 6LowPAN networks interface.
- Bluetooth low energy / Bluetooth ready
- Phone line simulator for legacy telephonic systems with modem simulation
- 2 open drain ouputs.
- 4 x 5Amp/220V power relays on ethernet plugin.
- CORTEX L4 ultra low consumption processor from ST, with 256KByte flash and 64KByte RAM
- 16 MBit Flash for long onboard data logging.
- EN50136-2
certified
- EN54-21 certified.
Cloud and APP's

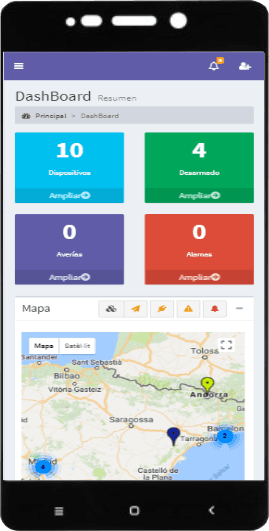

- NUVA cloud and NuvApp are offered as service for all security companies using our product.
- They provide basic functions for arming / disarming, bypassing and activating outputs for home automation.
- Customers can have home sensor's information in their hand such temperature / humidity data.
- The installer the chance to administrate their devices and customers and configure remotely their devices without need for a desktop application.
