IOT panels
Alarm Communicators and control panels

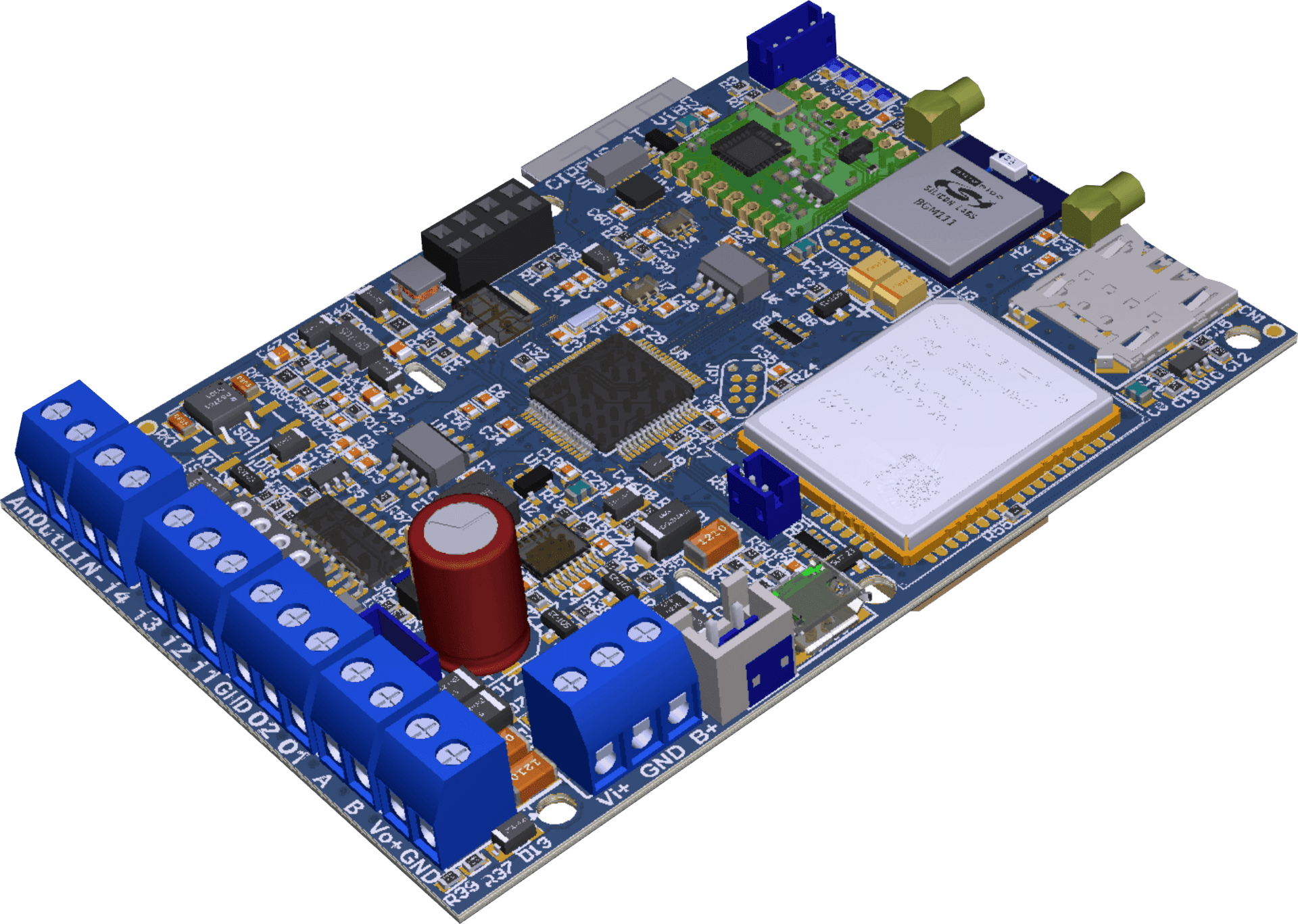

Cirrus-TL
- Bare PCB Celular (EGPRS+NB-IOT+LTE-CAT-M1) alarm communicator with MMCX connector + antennas
- LORA technology as backup network for antijamming.
- 3 Input and 2 open drain ouputs
- Phone Line simulation for control panel report's capture.
- Serial/Bus keypad integration with some control panels.
Cirrus-TLW
- Bare PCB, WIFI module for tcp-ip communications to cloud.
- EGPRS+NB-IOT+LTE-CAT-M1 alarm communicator with MMCX connector + antennas
- LORA technology as backup network for antijamming.
- 3 Input and 2 open drain ouputs
- Phone Line simulation for control panel report's capture.
- Serial/Bus keypad integration with some control panels.

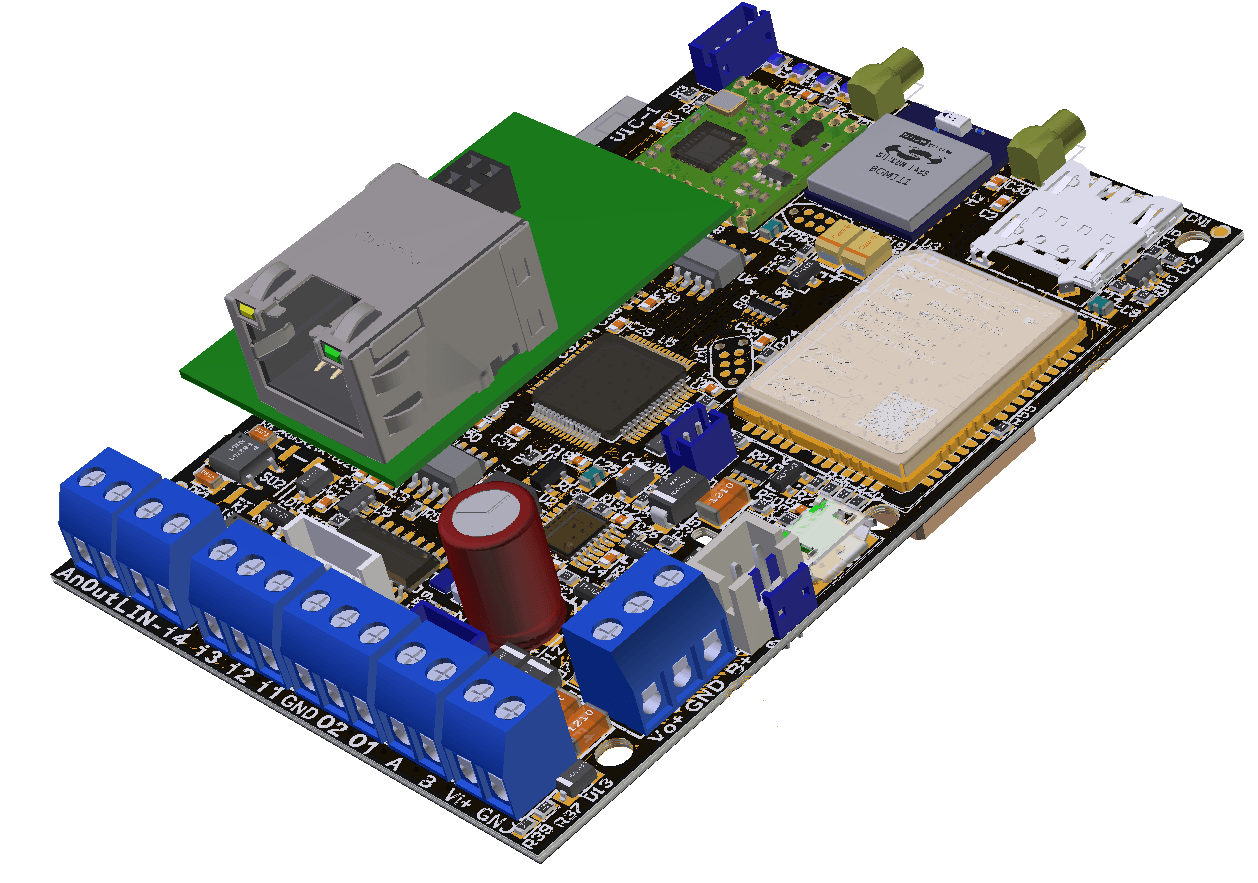

Cirrus-TLE
- ETHERNET module for tcp-ip communications to cloud.
- GPRS or NB-IOT (TLE) alarm communicator module with MMCX connector + antennas
- LORA technology as backup network for antijamming.
- 3 Input and 2 open drain ouputs
- 4 NO power relays
- Phone Line simulation for control panel report's capture.
- Serial/Bus keypad integration with some control panels.
Syrus TLx
- IP65 enclosure.
- Wall and box tamper meeting grade 3.
- TCP-IP communications to cloud.
- NB-IOT / LTE-CAT-M1 / EGPRS alarm communicator with internal antennas
- LORA technology as backup network for anti-jamming.
- 3 Input and 2 open drain outputs
- Phone Line simulation for control panel report's capture.
- Serial/Bus keypad integration with some control panels.

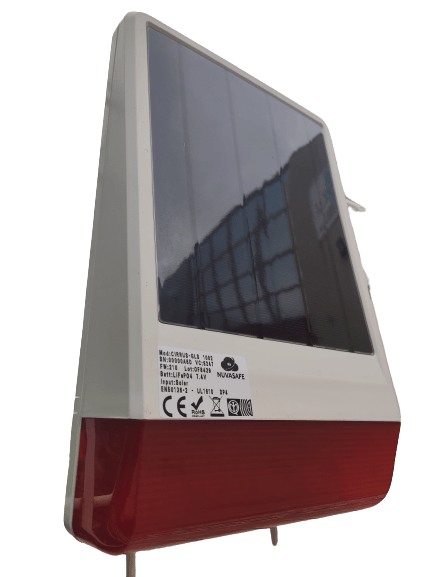

BELIUS
- Embedded alarm transmitter inside a solar siren.
- Lipo 2.2Ah internal battery with 5 days autonomy.
- It can work as a gateway or as a repeater depending if it has celular modem.
- Anti jamming detection
- It can take advantatge of existing wiring to trigger the siren and the communicator.

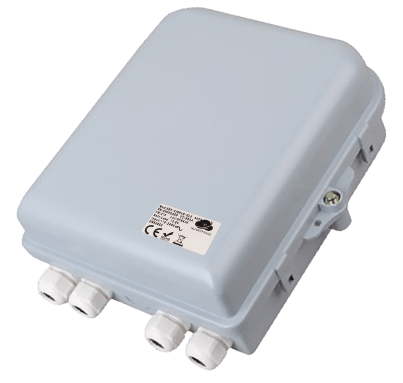

EBF-CIRRUS-GLBW
- IP55 Plastic box wireless control panel
- Internal power supply with battery backup.
- WIFI module for tcp-ip communications to cloud.
- GPRS alarm communicator.
- LORA technology as backup network for antijamming.
- 3 Input and 2 open drain ouputs
- BLE transceiver for IOT sensors integration

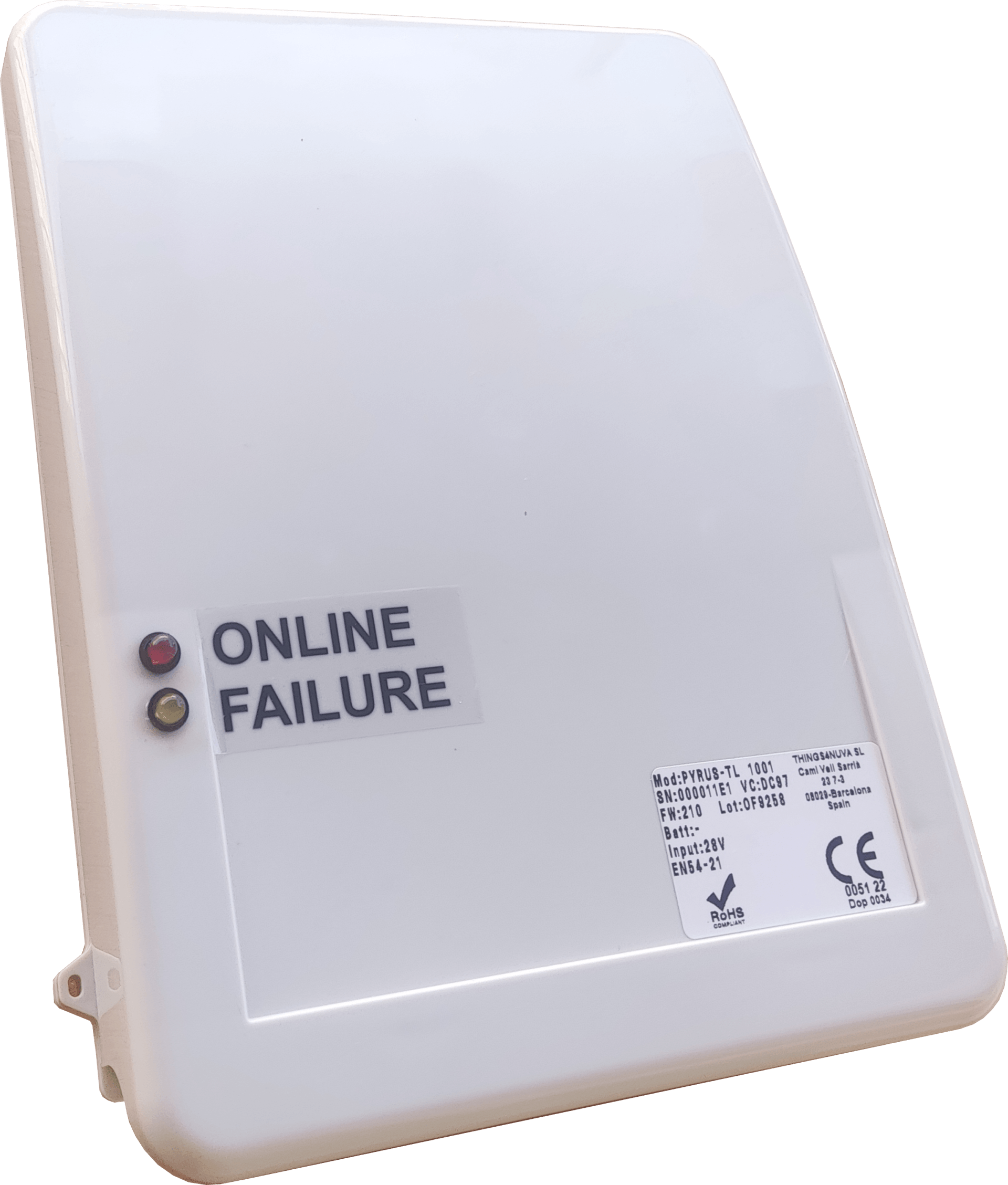

PYRUS-TL
- EN54-21 Certified NEW!.
- IP65 Plastic box alarm transmitter
- External power supply from main fire control panel with chance for internal batttery
- NB-IOT / LTE-CAT-M1 / EGPRS fire alarm communicator with internal antennas.
- LORA technology as backup network.
- 3 Input and 2 open drain outputs.
- RS485 / RS232 options.

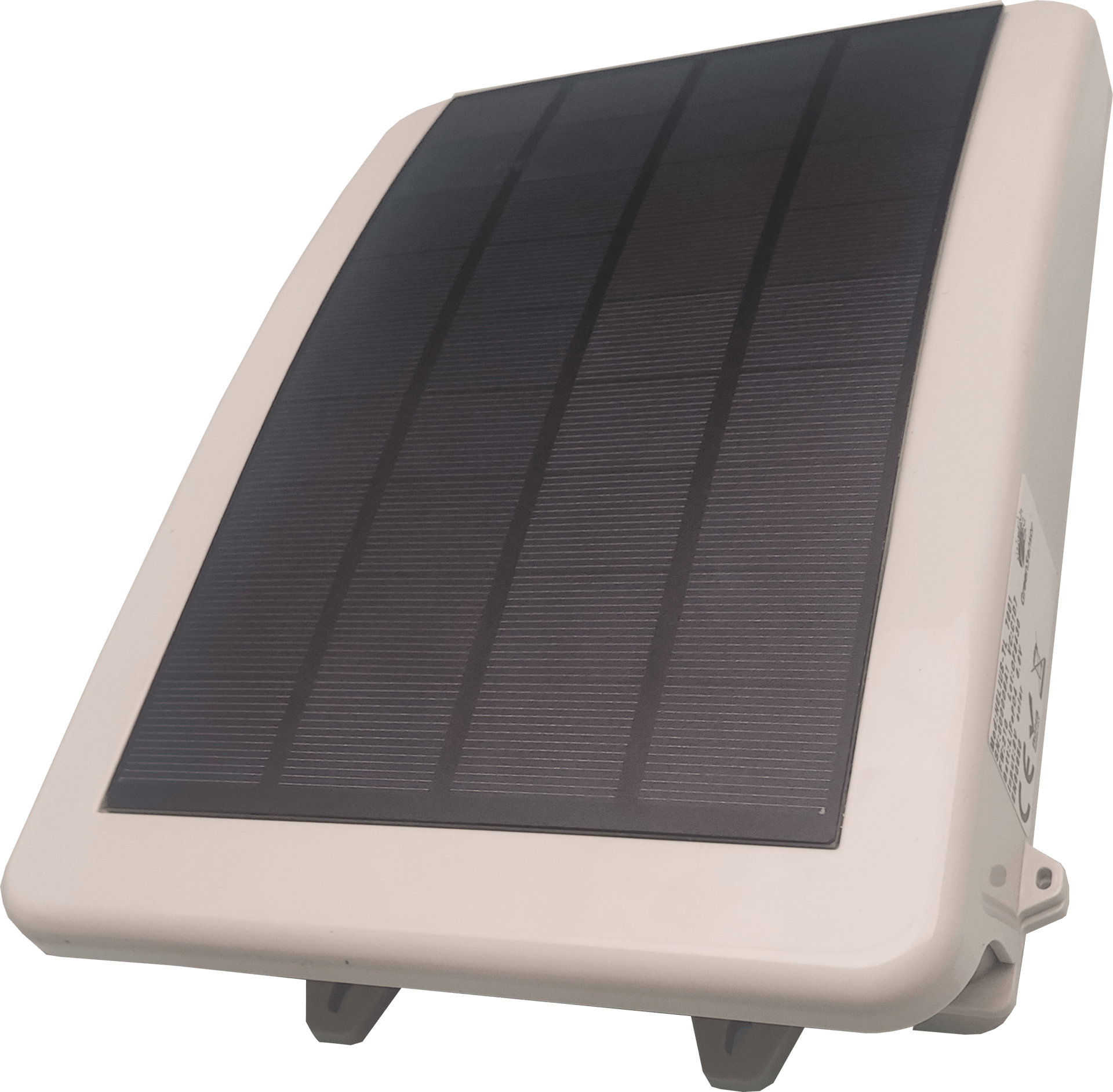

HELIUS-GL/B
- Lora gateway for outdoor applications
- Internal or optional external 5dBi LORA antenna
- Brackets and pale mounting accesory
- Embedded solar panel
- internal LiFePO4 6.6V 7Ah, up to 3000 charge / discharge cicles
- Battery autonomy up to 15 days without sunlight
- Deploy you LORA network without need for installation.
- Model with Bluetooth , can work as Online control panel with BLE sensors, protect isolated areas without electricity and without need to change batteries, alarm transmission without delays!
Our philosofy
Quality
The circuits designed for nuvasafe products have been choosen to have the UL brand and EN5013x approvals, manufacturing is carried out in Spain ISO 9001 and ISO 14000 certified falicilites
Innovation
The live motive fo nuvasafe team, is to offer the most innovating products for the security market
Offering an unique in class LORA network to assure the best performance of your system
IOT solutions
Nuvasafe is a brand of Nuvathings, if you whish to know for a wide range of IOT solutions please visit Nuvathings website, where you can find products for asset tracking, smart cities, smart agriculture, energy and water solutions. All these solutions will roam with Nuvasafe alarm transmitters.
One single product , infinite solutions.
